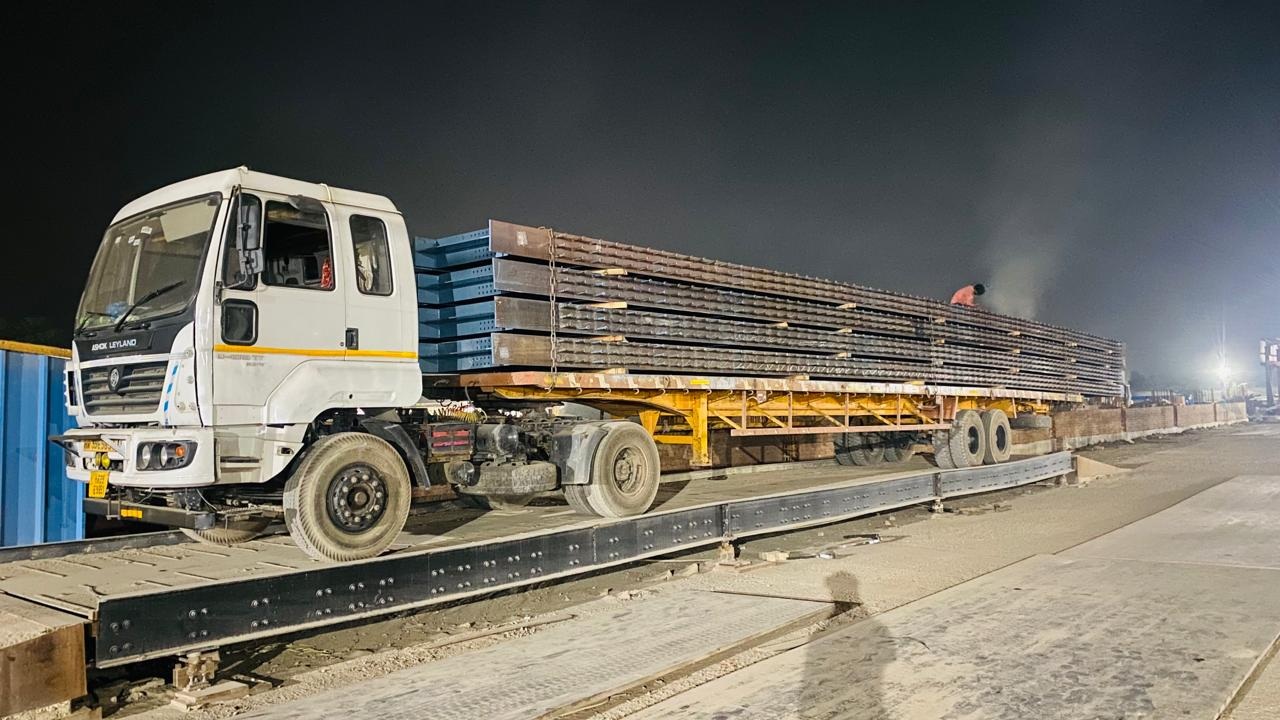

Bridge Section – Span – 21 MTR long
GET A QUOTE
Manufacturing Facility
Whether you’re building, remodeling, buying, or selling, we bring seamless project execution under one roof.
Loading Technique and in house weighing
Regular Meeting with team members

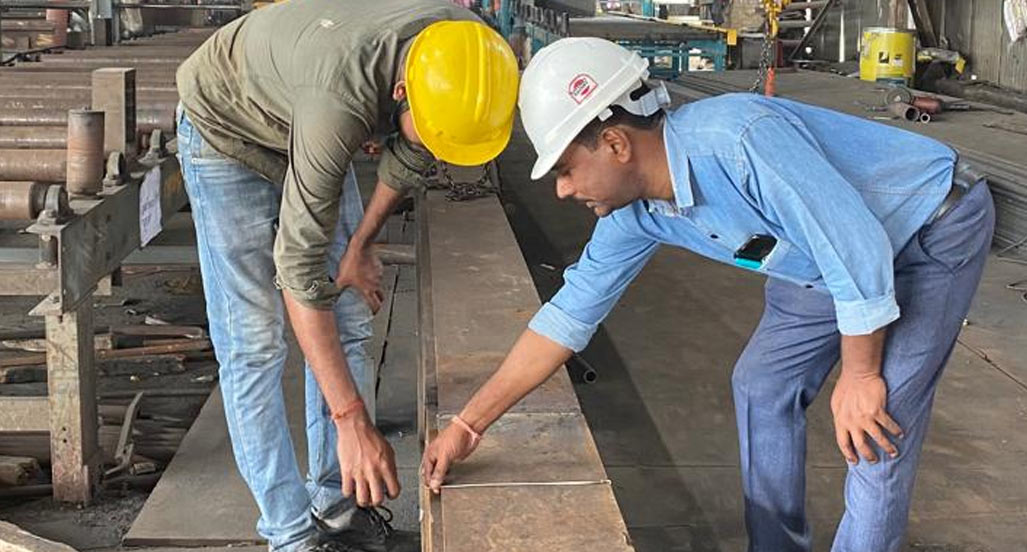

Quality check at seaming section

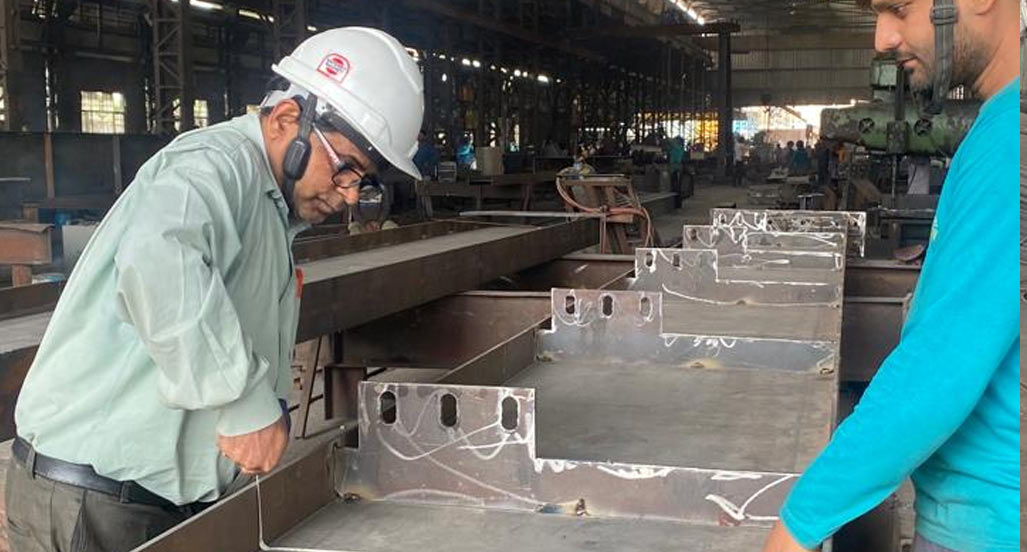

Quality check at setup section

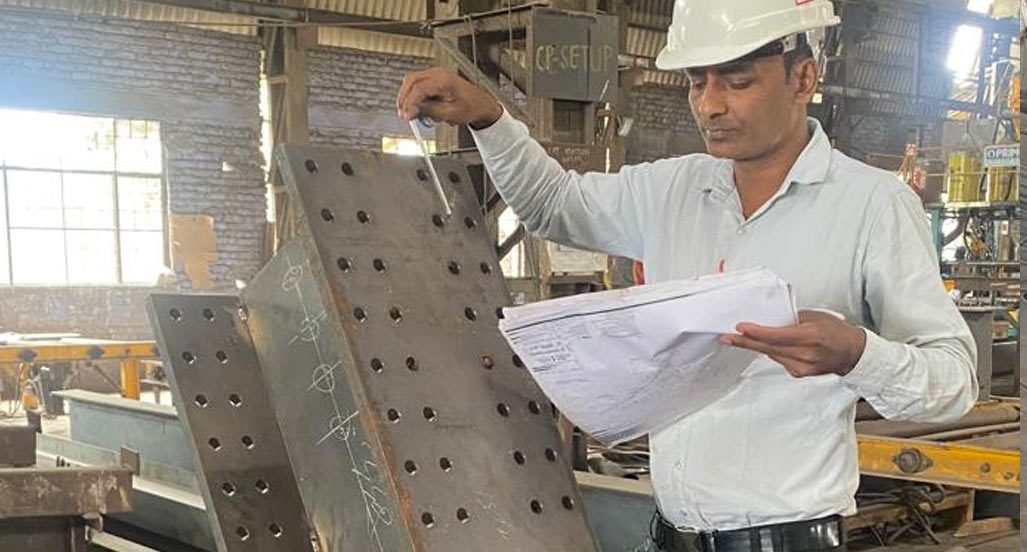

quality check at finishing section

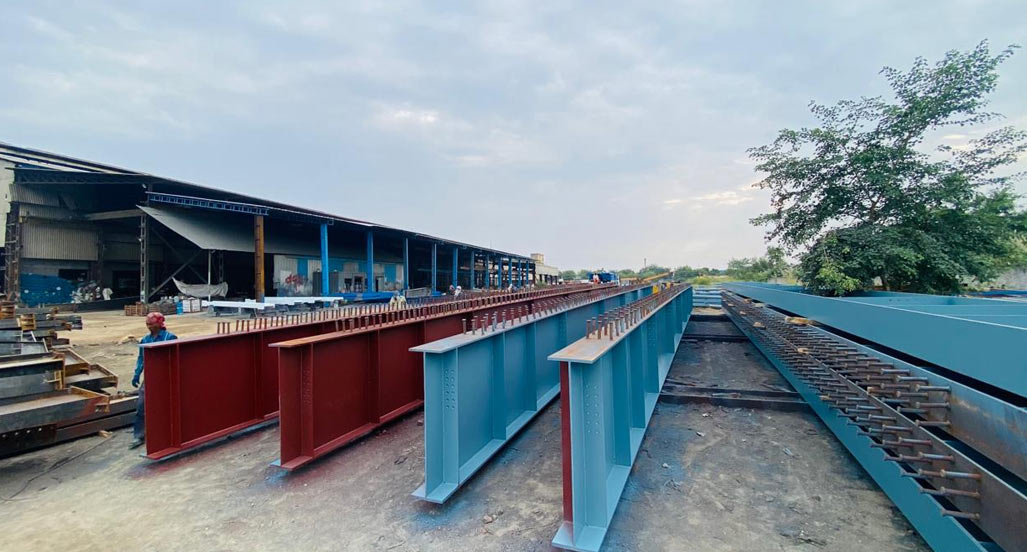

Columns with stud welding

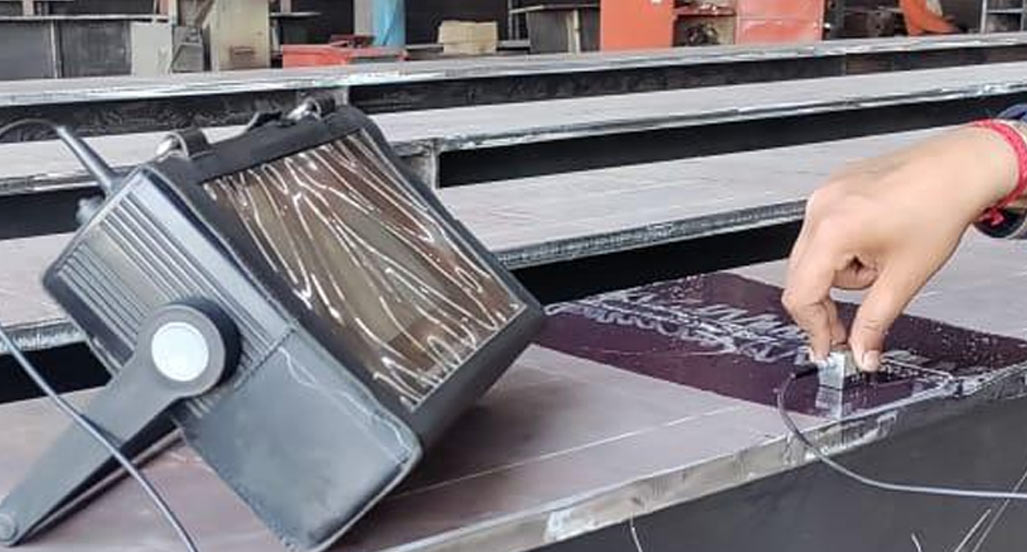

Welding Ut Test
Punching on child parts

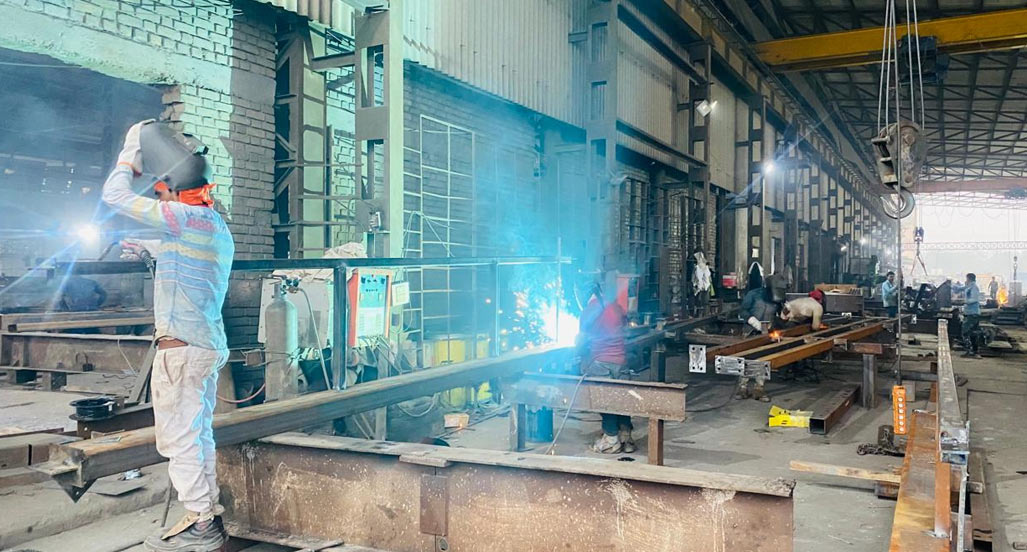

On going welding sections
H & I Sections
MECHFAB specializes in the customized fabrication of H and I steel sections, designed to meet a wide range of structural requirements across industrial, commercial, and infrastructure projects. Engineered with precision and manufactured using advanced fabrication and welding technologies, MECHFAB’s H/I sections deliver high strength, excellent dimensional accuracy, and consistent quality suitable for demanding applications.

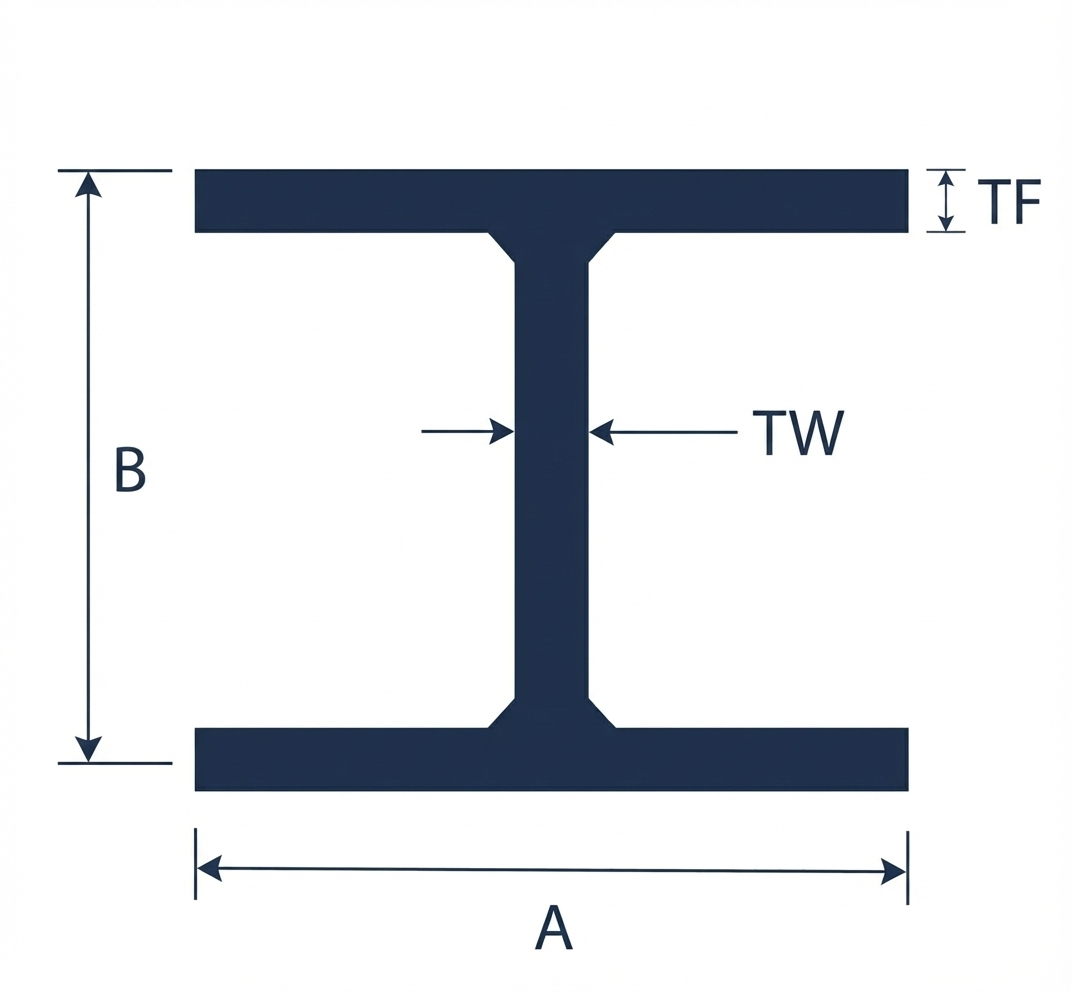

| Detailed Description of PES | Minimum | Maximum |
|---|---|---|
| Thickness of Flange (TF) | 6 mm | 60 mm |
| Thickness of Web (TW) | 5 mm | 40 mm |
| Height (B) | 300 mm | 2500 mm |
| Width (A) | 150 mm | 1000 mm |
| Length of Beam | NA | 12000 mm |

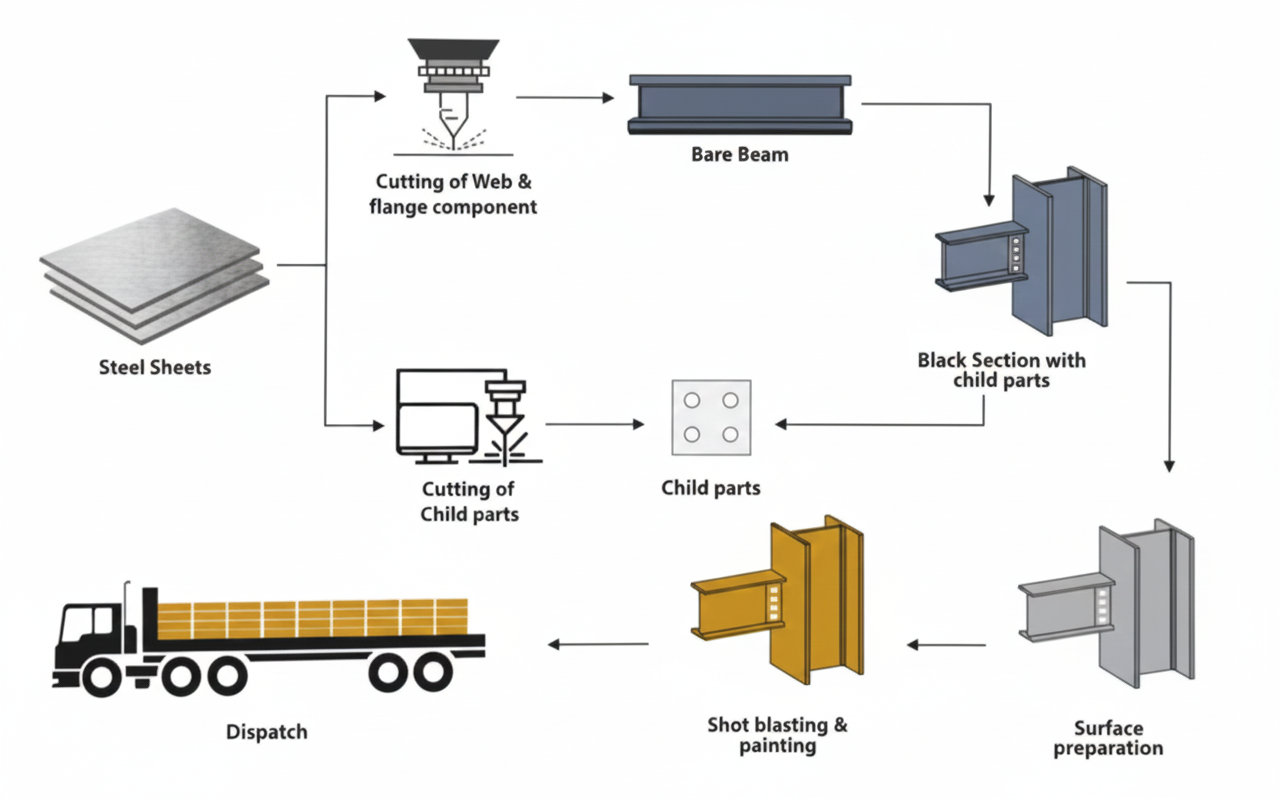

Manufacturing Flow
Box Sections
MECHFAB fabricated box sections are engineered for heavy-duty structural applications where high load-bearing capacity and superior rigidity are critical.
With a wide range of customizable sizes and grades, these sections are manufactured using precision welding techniques to ensure strength, durability, and dimensional accuracy.

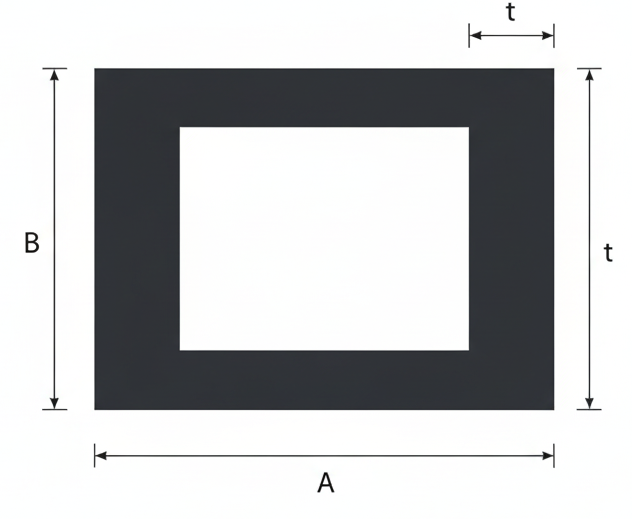

| Detailed Description of PFS | Minimum | Maximum |
|---|---|---|
| Thickness of Flange & Web (t) | 5 mm | 80 mm |
| Height (B) | 100 mm | 1000 mm |
| Width (A) | 100 mm | 1000 mm |
| Length | NA | 12000 mm |

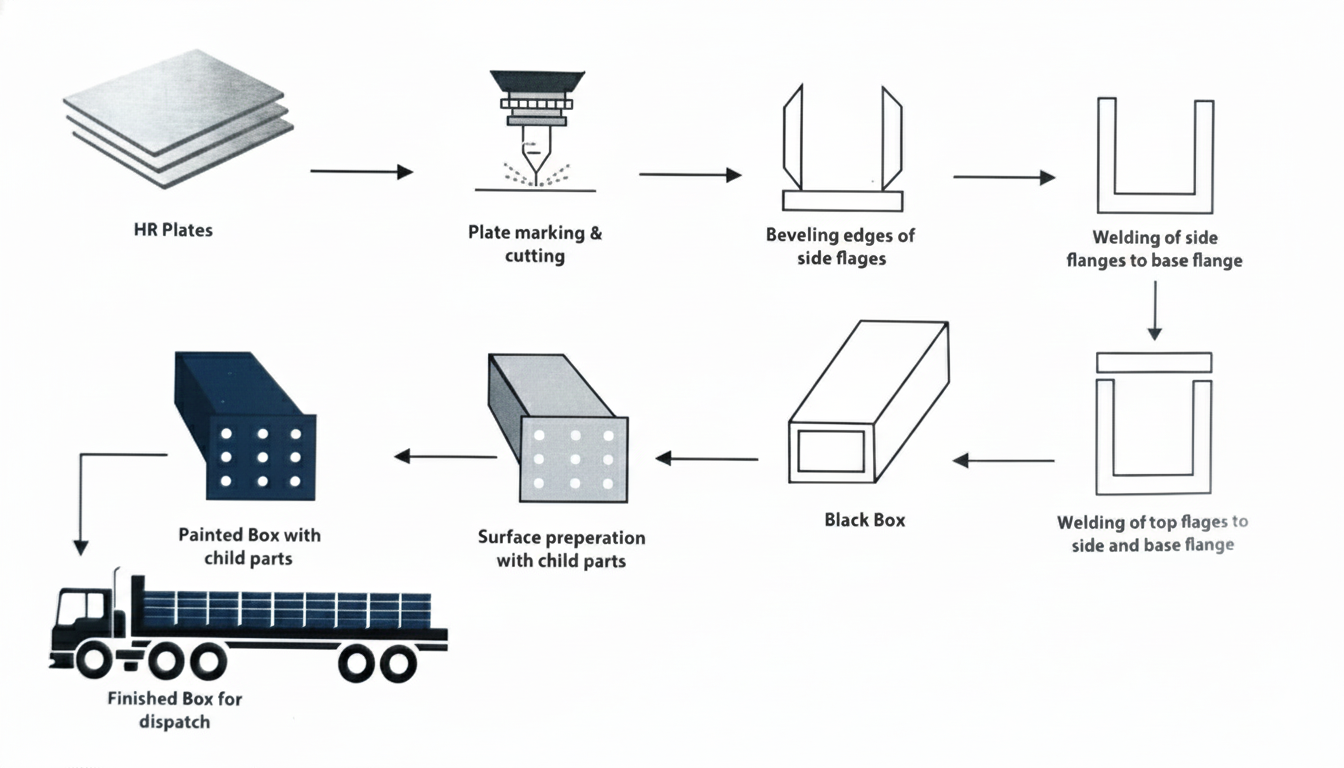

Manufacturing Flow
